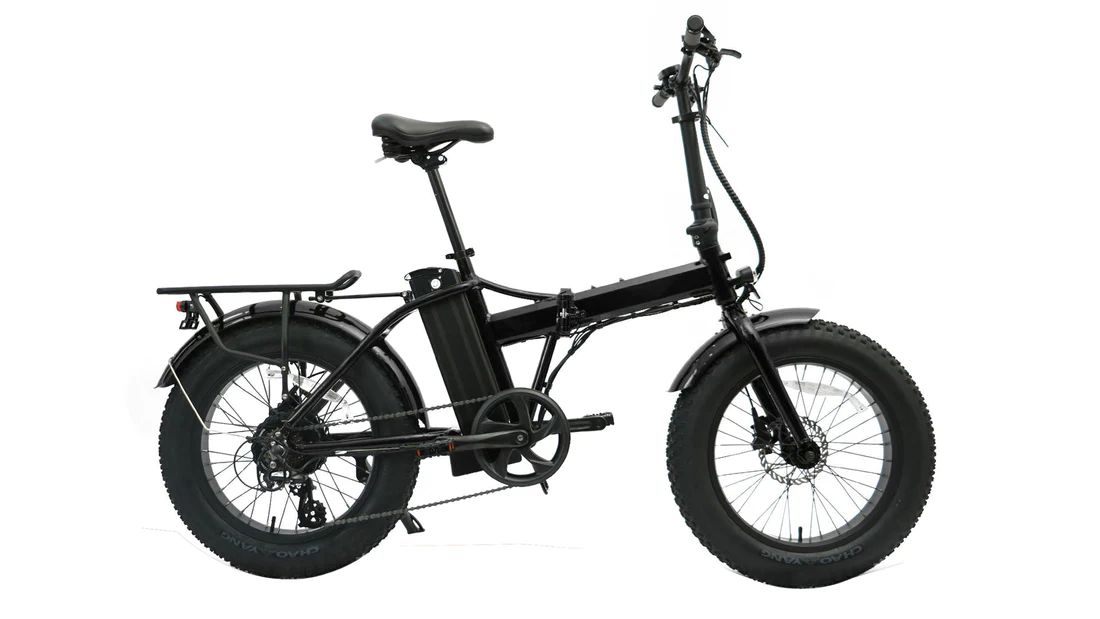

E FAT MN ELECTRIC BIKE | Great Life Fitness / Vibe Ride

Eunorau supplied the E FAT MN with plenty of wiring slack in the front to alleviate this problem and I really appreciate it. The E FAT MN can handle quite a bit, and that is thanks to the Kenda Krusade Sport fat tires with 60 threads per inch casing. As mentioned before, the tires are 20” x 4” and rated for 5psi-30psi… the lower levels, such as 5psi, really work well on various terrains such as sand or snow, I highly recommend dropping that tire pressure if you want to take it out on adventures because it makes a world of difference.

12.5Ah High Capacity Battery

Running on a 48-volt system, as well as a 12.5Ah battery, this bike can reach up to an estimated max of 40 miles (64 km) with pedal assist. The locking removable battery located beneath the bike’s saddle, not only keeps the center of gravity low and overall weight well-balanced but makes it convenient and easy to charge.

500W Rear-Mounted Motor

A fat hub motor in the Rear wheel can crank out a continuous 500 watts of power with the ability to ratchet things up to over 750 peak watts of power for hill climbs and quicker acceleration. This motor has 80 Newton meters of torque.

Foldable Frame

Having a folding feature on the main frame tube and telescoping stem, the trike is able to fold and be stored away.

Features

Powered using the main battery pack and controlled by the display. Efficient electric lights ensure your riding safety at night, never having to worry about charging or replacing batteries at the end of a long day.

These brakes are sensitive, but provide efficient and ample force when braking. When riding in harsh conditions; they are swift and can be relied upon to ensure your safety.

Super bright taillight visible to motorists over 1500 feet away, brings your safety on the dark night.

The aluminum bash guard on this model helps protect the chain ring teeth from strikes, while also keeping the chain locked ﬁrmly into place.

The compact and clear backlight display lets your eyes get all information immediately, like battery capacity, time, pedal assist level, speed, and range. Simple is always great.

Every fancy-memory of riding should have one comfortable saddle. It must-have makes your long-trip riding with less fatigue and more enjoyment.

Specifications

Battery: 48V 12.5Ah
Range: 40-50 Miles
Motor: 48V 500W Brushless hub motor with 80 N.m torque
Total Payload Capacity: 330 lbs
Recommended Rider Heights: 5'1'' ~ 6'1''
Maximum Speed: 20 MPH

Charger: US standard 2.0 A smart charger
Controller: 48V 20A
Display: K-LCD5 Panel
Weight: 62 lbs / 28kgs
Pedal Assist Intelligent: 0~5 level pedal assist
Box Dimensions: (cm) 145 L x 35 W x 77 H

Components

Tires: KENDA/CHAOYANG Tires 20'' x 4.0''
Brake: Mechanic Disc with motor cutoff switch
Rear Light: Super bright tallight controlled via display
Shifter: Shimano 7 speed gear shift system
Brake Rotor: Promax 160 MM Disc Brake
Throttle: Thumb Throttle
Crank: 170mm forged Aluminum Alloy
Freewheel: Shimano Altus 7 Speed Rear Derailleur
Handlebar: Adjustable stem for comfort

Frame Material: Aluminum alloy 6061
Stem: Telescoping Height, 260mm Base with 140mm Extension, 10mm Spacer, 25.4mm Clamp Diameter
Pedal: High-Quality Folding Nylon Pedals
Front Light: LED Light
Saddle: Comfort Saddle, Height to Ground 32.6''-39.8''
Tool: Included
Chainring: 48T chain-wheel crank
Rims: 20inch Black Alloy
