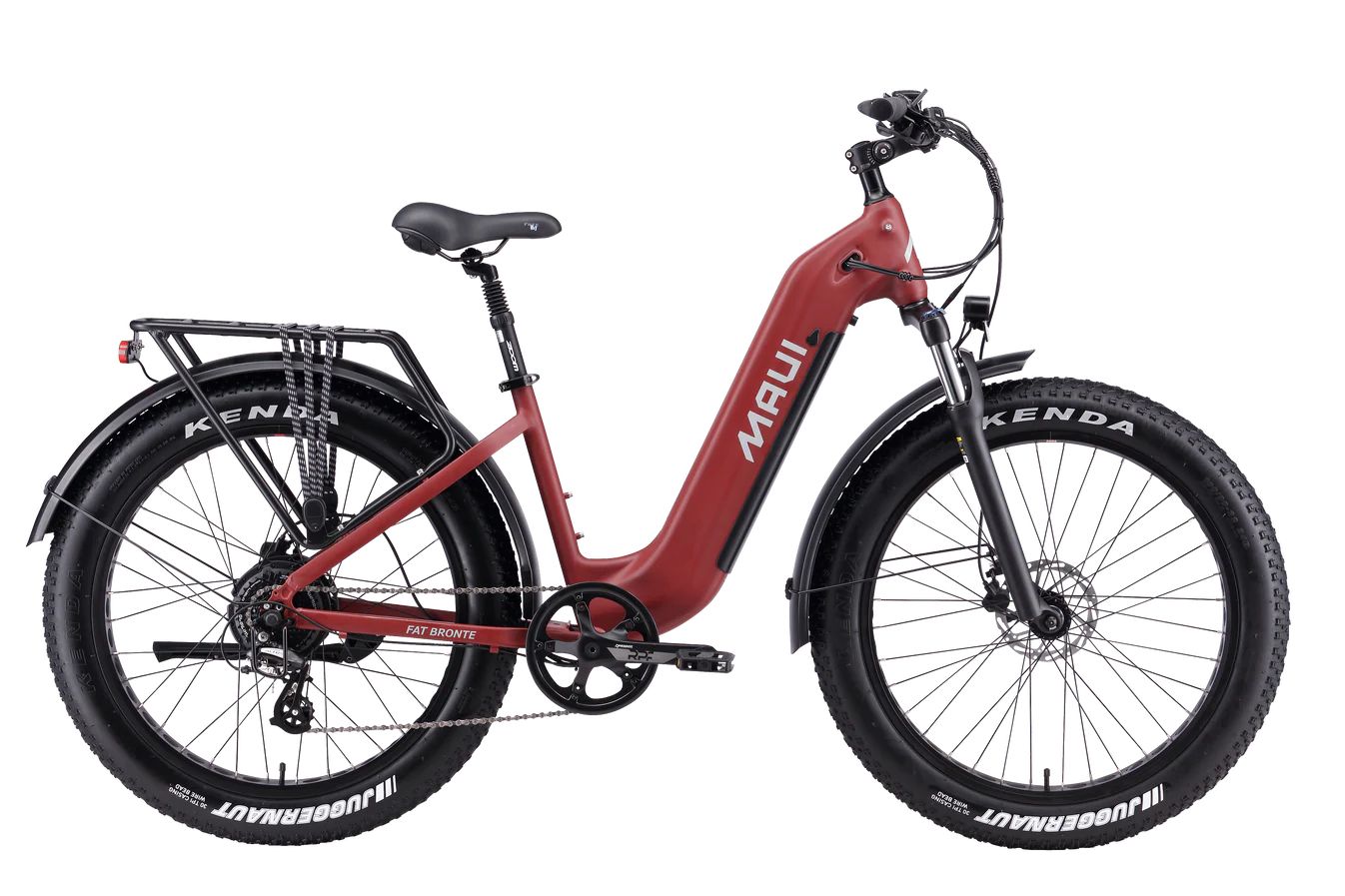

FAT BRONTE MAUI ELECTRIC CITY BIKE STEP-THRU | 500 W | 130 km Battery Range | 32 km/h Top Speed

New for 2025: we now have a torque sensor. This new assistance takes into account the pressure exerted on the pedals to offer motor assistance adapted to the demand. This year, we are adding a fat bike version of our model #1. The Fat Bronte will be easy to straddle and will allow you to go on trails or your favorite bike path. The 500W Bafang motor and Samsung battery will let you extend your rides with guaranteed enjoyment.

Frameset

FRAME

Alloy 26'' step through frame with smooth welding. Integrated rear rack, fender mounts, Electronic Access Port. Removable battery with security lock.
FORK

Alloy suspension fork, with hydraulic lock
BIKE WEIGHT

29kg
WEIGHT CAPACITY

135kg

Drivetrain

SHIFTERS

SHIMANO 8-speed rapidfire
CRANK SET

PROWHEEL, 46T
CHAIN

KMC Z7
REAR DERAILLEUR

SHIMANO Altus 8 speed
CASSETTE

SHIMANO 8-speed 12-32T

Components

HANDLEBAR

Alloy bird type bar
GRIPS

Non-slip, shock-absorbing with Alloy ring
STEM

Alloy stem
SEATPOST

Alloy 27.2mm with quick release (350mm)
BRAKE

TEKTRO, HD-E3520, hydraulic disc brake
ROTORS

160mm

Wheels

TIRES

CST 26'' x 4''
RIMS

Alloy 26''

Electric Technology

MOTOR

BAFANG, RM G020.500.DC, 48V/500W
CONTROLLER

48V/500W/18A
BATTERY TYPE

SAMSUNG, 48V, 15AH, Lithium battery, removable with security lock
BATTERY CAPACITY

5000 mAh
RANGE

Up to 130km subject to ambient temperature, rider weight and ride style
POWER ASSIST

5 Levels of power assisted pedaling
THROTTLE

KAHUA, EA10 thumb throttle 36V
BATTERY CHARGER

48V Smart charger, LED status, with CE certificate

Accessories (included)

Display
Front & Rear LED Lights
Front & Rear Fenders
Rear Integrated Cargo Rack
Kickstand
Pedals

A silent force that helps you get there

Powerful yet quiet, the Bafang motor delivers satisfying flow whether you’re climbing or descending. Its 500W assistance takes the sting out of any ascent and puts a smile on any rider’s face.

Our bikes offer a pedal assist system combine to a handlebar throttle. The torque emulating Pedal Assist Sensor (PAS) signals the controller to run the motor between 5 levels of pedal assist, providing a boost to your pedalling depending on the level of assist you select while riding. You can also use the on-demand throttle that gives you the power for an instant acceleration or uphill push regardless of pedalling to give you a fully electric ride in case you need some support.

Always in full control

Ride fast and in control with premium hydraulic disc brakes. Experience great stopping power in moments you need it the most.
