Ideal for city rides and commutes, offer reliability and performance with a puncture-resistant K-Shield layer. Featuring a tread pattern for excellent grip and stability on urban roads, they also include burly side knobs for confidence and grip in wet or loose conditions, making them e-Bike certified and a dependable companion for any urban cyclist.

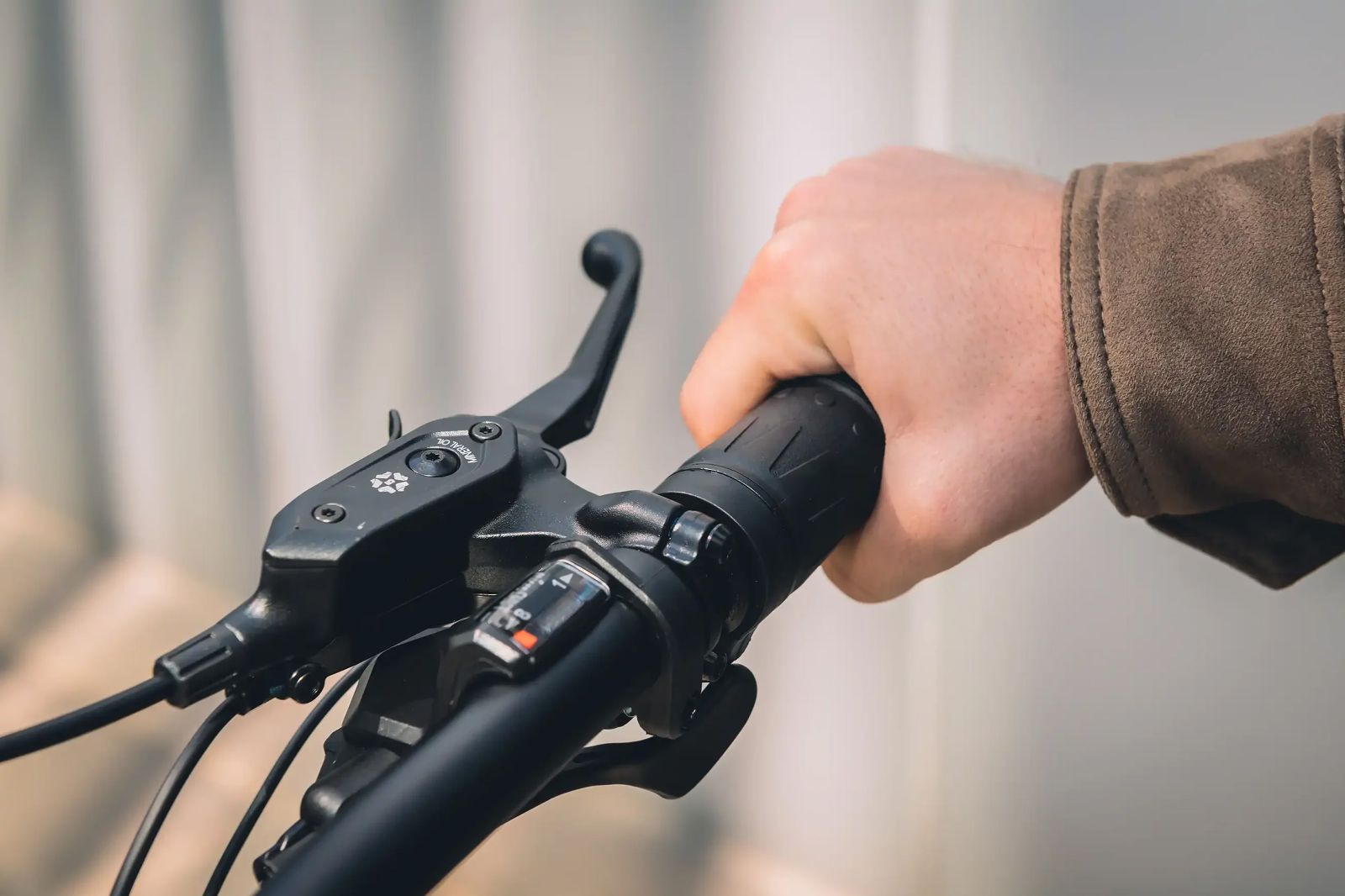

The City e-Bike boasts rear turn signals, enhancing safety on urban roads. Activated by convenient buttons on the handlebars, they provide clear signals to other road users.

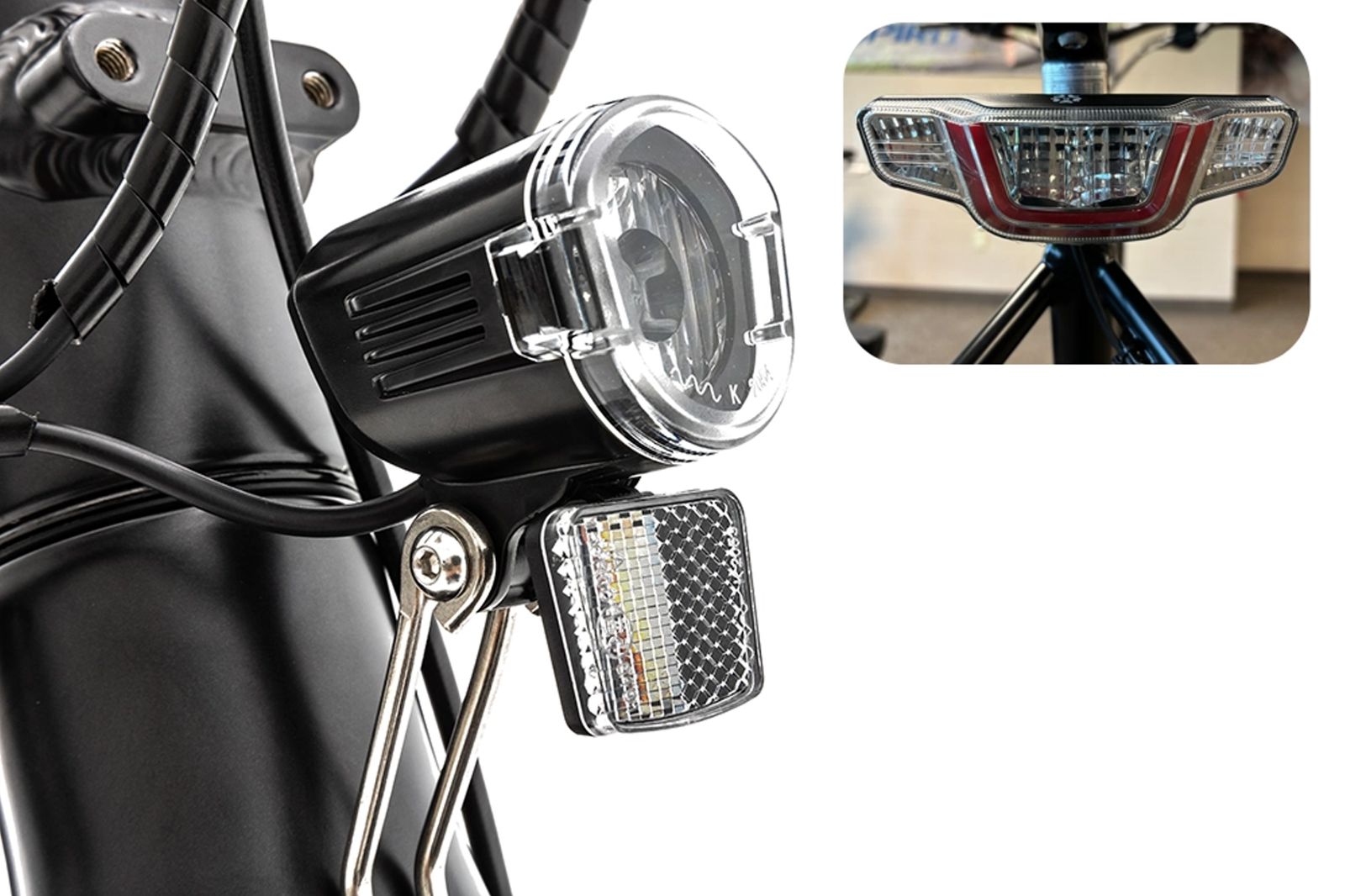

Moreover, a front headlight, controlled via the front display console, illuminates your way during evening rides, ensuring visibility and security.
The Cikada App
Get a personalized riding experience with the Cikada app, available on iOS and Android
Power System

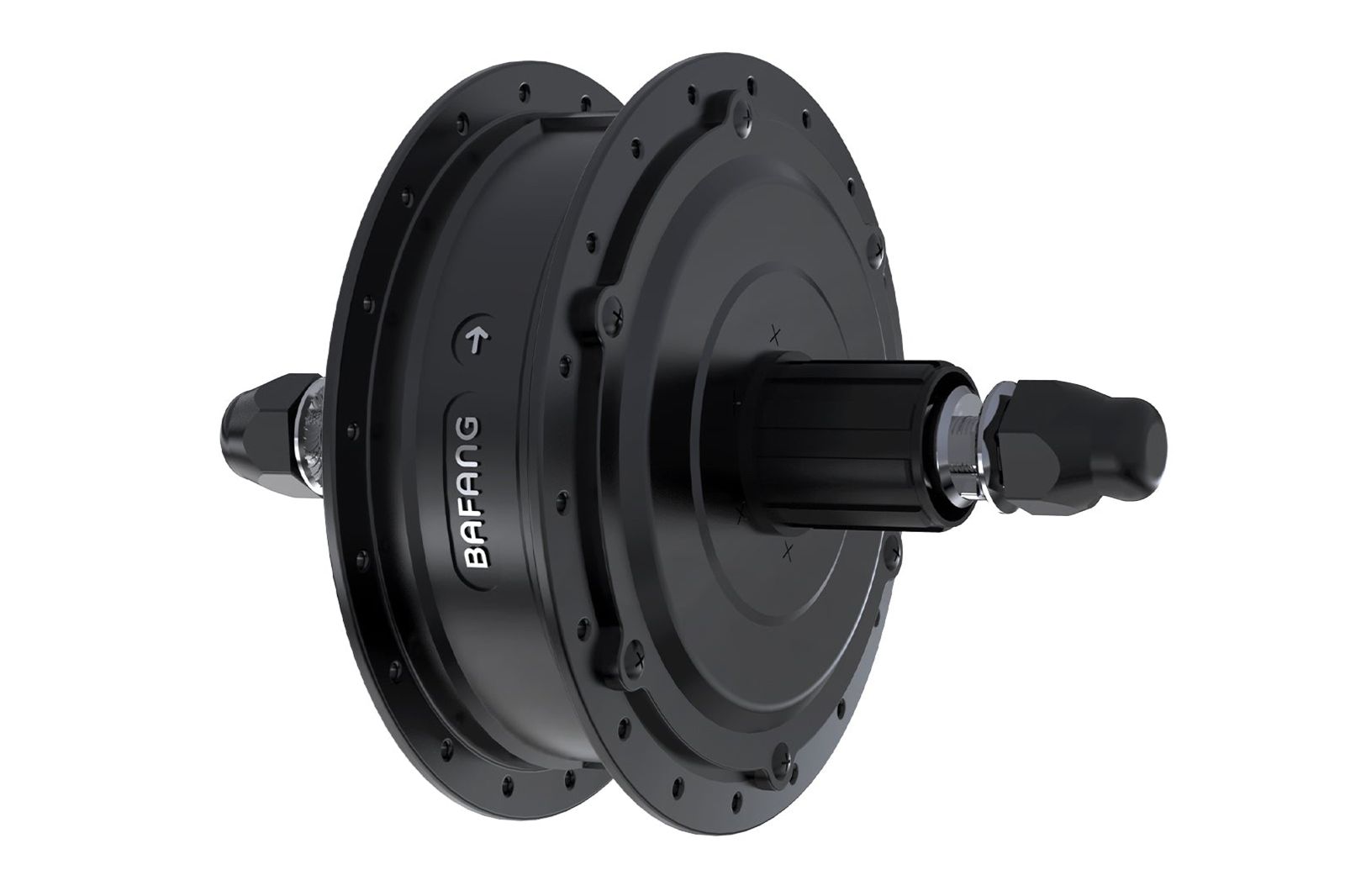

Motor: BaFang H400 500W rear hub motor; 40Nm
Sensor: BaFang Dual Hall speed sensor

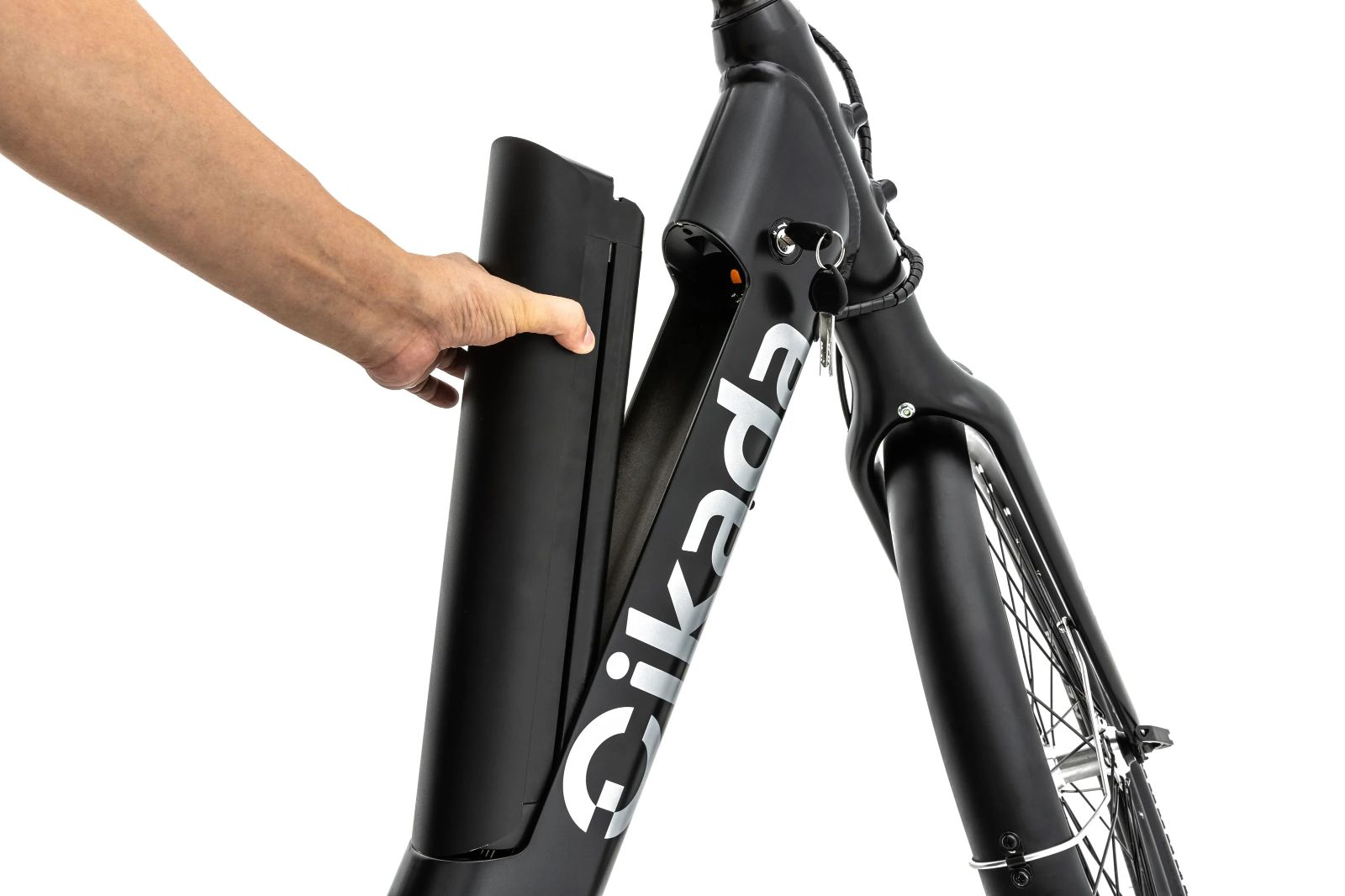

Battery: 480Wh (48V/10Ah) LG 21700 battery, 6-8h charging time; removable for charging on or off the bike; integrated battery lock for added safety
Display: BaFang with Bluetooth (5 modes, km/mi switch, walk assistance, battery indicator, lighting control, speed display, time display, motor output power indicator, energy consumption indicator, support levels, information view, error message view)
Frameset
Frame: 6061 aluminum low step frame, 27.5"
Fork: Alloy rigid fork, 10mm x 100mm (0.4” x 4”)
Wheels
Tires: Kenda Kwick Drumlin, anti-puncture with a reflector strip 27.5*2.0"
Rims: Alloy 27.5”, double wall
Inner Tubes: Kenda A/V
Front Hub: Alloy, 13G spokes x3/8x36Hx100mm O.L.D.
Rear Hub: Hub drive motor, alloy, 13G spokes x3/8x36Hx138mm O.L.D.
Interactivity
Compatible Applications: Cikada app (riding display/ride summary/ride history)
Displayed Data: Real-time speed/current time/battery capacity
Ride Summary: Ride date and time/route/total distance/ total time/average speed/maximum speed/ average HR/maximum HR/calories burned/ CO2 reduced/ speed graph/ HR graph
Ride History: Total distance/total time/ CO2 reduced/ total rides
Drive Train
Crankset: Prowheel 44T 170mm (6.7”), with chain cover
Shift Lever: Microshift TS-39 R, thumb shifters
Throttle: Twist style
Rear Derailleur: Microshift RD-M26
Cassette: Microshift, 8 speed, 11T/34T
Chain: KMC, Z8.3
Pedals: 9/16” steel axle with reflectors, size: 112mm x 108mm (4.4” x 4.3”)
Components

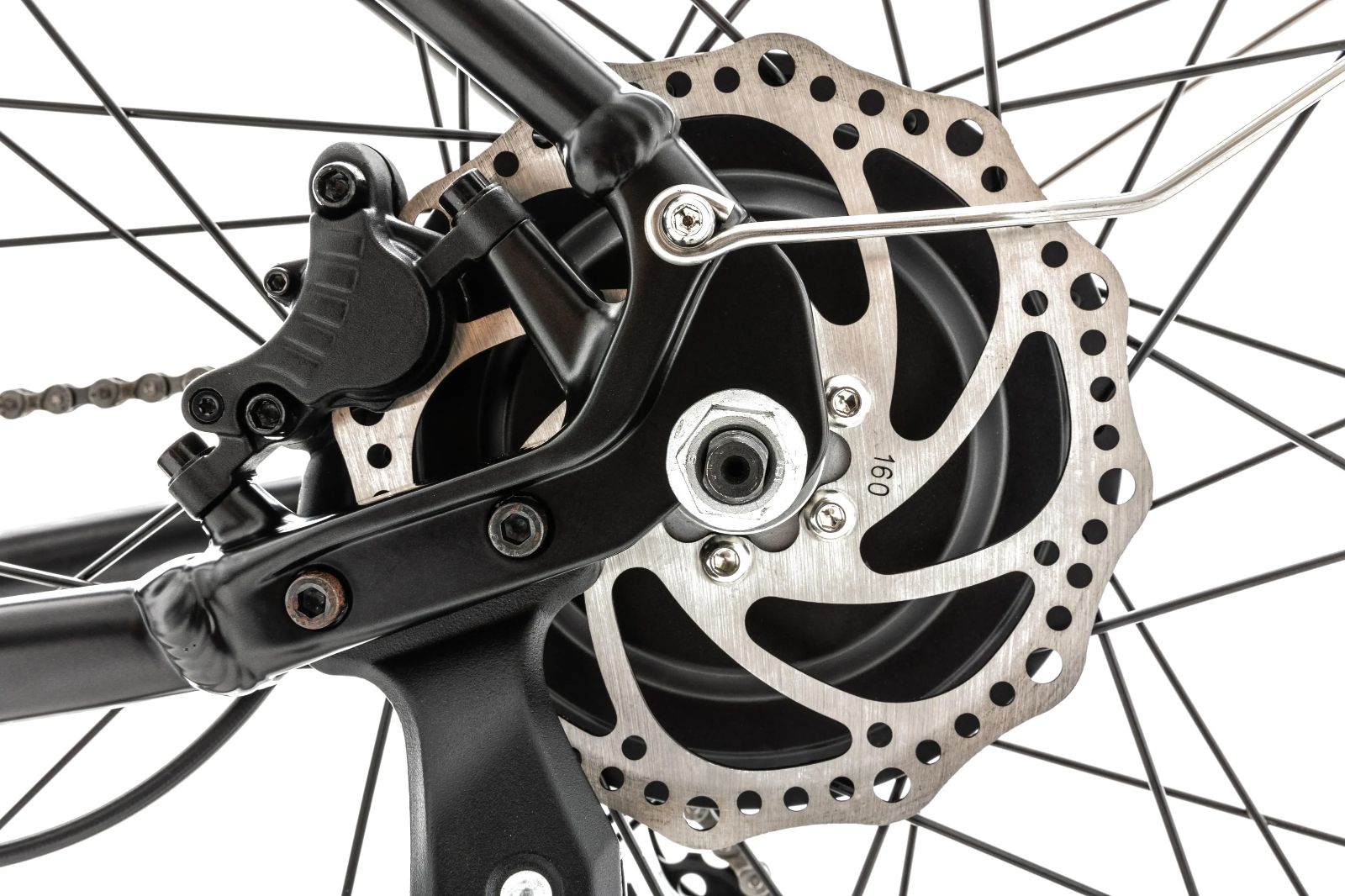

Brakes: Hydraulic disc brakes, rotor 160mm (6.3”); cut off power function
Handlebar: ZOOM, aluminum, rise bar; width 680mm (27”), barbore 31.8mm (1.25”)
Stem: ZOOM, adjustable aluminum; extension 105mm (4.0”), barbore 31.8mm (1.25”)
Saddle: Anatomic polyurethane saddle with a steel seat rail
Seatpost: ZOOM, aluminum (30.9mm x 250mm/ 1.2” x 10” for size S/M, 30.9mm x 300mm/ 1.2” x 12” for size M/L)
Grips:Velo gel
Bottom Bracket: BB73
Additional Information
NW/GW: 24kg (53lb), 37.5kg (83lb)
Carton Size: 66.1x12.8x34.8" (167.9x32.5x88.4cm)
Maximum User Weight: 140kg (309lb)
Size Options
Small/Medium: 19” (48cm) for riders between 5’2”-5’8” (157cm - 173cm) in height
Medium/Large: 21” (53cm) for riders between 5’5”-6’4” (165cm - 193cm) in height
Safety Features
Front Headlight: on/off (operated via console)
Taillight: illuminated, turn signals
Horn
Battery Lock
Power Cut-off: once braking system is activated
Speed Sensor: allows for a maximum speed of 32 km/h
Password for Console: required to access e-Bike data
Fender Guards
Kickstand
City e-Bike Geometry
| Part |
Small/Medium |
Medium/Large |
| A - Effective Top Tube |
623mm (24.5″) |
621mm (24.4″) |
| B - Seat Tube Length |
480mm (19″) |
530mm (20.8″) |
| C - Head Tube Angle |
69° |
69° |
| D - Seat Tube Angle |
72.5° |
72.5° |
| E - Chain Stay Length |
485mm (19″) |
485mm (19″) |
| F - Head Tube Length |
185mm (7″) |
200mm (8″) |
| G - Trail |
80mm (3.1″) |
80mm (3.1″) |
